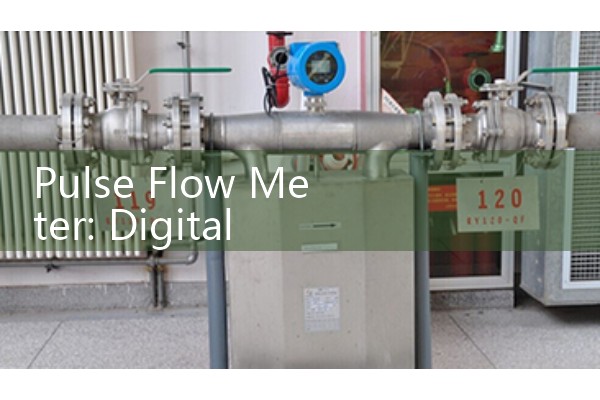

Pulse Flow Meter: Digital Signal Output Fluid Instruments
Quick Answer
Pulse flow meters with digital signal output send a frequency or square wave signal directly proportional to flow rate. These signals feed into PLCs, flow totalizers, batch controllers, and remote telemetry units without losing data over long cable runs. They are the first choice for dosing, batching, and custody transfer where accurate totalized volume matters more than a smooth analog signal.
What Makes a Digital Pulse Output Different
A 4-20 mA loop is simple and widely used, but it only tells half the story. A pulse output gives you a discrete count for every unit of volume that passes through the meter. For Oval Gear flow meters, one pulse can represent 10 ml, 100 ml, or 1 litre depending on the encoder disc. For a Vortex flow meter on a 150 mm steam line, one pulse could equal 10 kg of steam. The PLC simply counts edges. No analog drift, no scaling resistor, no ground loop issues. In practice, this is why most engineers on batch mixing skids skip the analog output entirely and wire the pulse channel straight to the digital input card.
Signal Types We Configure at the Factory
Silver Automation Instruments pre-sets the pulse output according to your control system. Common configurations from our Nanjing workshop include open collector NPN, PNP (sourcing), push-pull, and dry contact reed switch. Frequency range is usually 0 to 2000 Hz, though on turbine meters handling diesel we often limit the top end to 1200 Hz to avoid saturating the input module. Pulse width can be adjustable, typically between 0.3 ms and 500 ms. If your PLC requires a 24 V high level with a specific duty cycle, just tell us the voltage rail and the minimum detection pulse width of your DI card. We have pre-wired SILVER-OGM oval gear meters for a paint manufacturer in Thailand that needed 24 V push-pull output and a pulse resolution of 100 pulses per litre for solvent batching.
Which Silver Instruments Flow Meters Offer Pulse Output
We do not reserve pulse output for only one flow meter type. You will find digital pulse signals across our entire portfolio. Oval Gear flow meters (SILVER-OGM series) for chemicals and fuels produce a high resolution pulse train, often exceeding 1000 pulses per litre on a DN15 meter measuring diesel at 20 cP. Vortex flow meters (SILVER-VF series) on saturated steam lines deliver pulse per unit mass output, handy for boiler monitoring in a food processing plant. Turbine flow meters for clean water and low viscosity solvents deliver a magnetic pickup frequency output that connects directly to a panel totalizer. Even our Electromagnetic flow meters, which are known for analog 4-20 mA, can be ordered with an open collector pulse output scaled to litres or cubic meters per pulse. A recent order from a water utility in the Philippines used a DN200 electromagnetic meter with pulse output for remote pump station totalization, transmitting flow data every 1000 litres to a SCADA RTU.
ATEX and Harsh Environments: Pulse Signal Still Works
Some engineers worry that a high frequency square wave signal breaks down in a noisy plant with VFD drives and large motors. Our experience on oil depots in the Middle East says otherwise. With proper shielded, twisted pair cable and a 1 kΩ pull-up resistor at the PLC end, a 10 kHz pulse train will travel 300 metres without missing a count. For hazardous areas, we supply flow meters with intrinsically safe pulse output, certified to ATEX Zone 1 (Ex ia IIC T4). The SILVER-OGM series with explosion proof housing puts the reed switch pulse output behind a zener barrier. No expensive isolator cards needed. Just a simple barrier and a counter in the safe area.
Real World Setup: What You Need to Specify
Here is the thing. Over 60 perc
_600x400.jpg)
When to Choose Pulse Over 4-20 mA
If your application requires a cumulative volume reading and you want to avoid signal conversion errors, pick pulse. A batch controller that fills 200 litre drums with edible oil cannot rely on integrating a 4-20 mA signal over time because the analog loop drifts with temperature. A pulse-based oval gear meter produces a hard count of 2000 pulses per 200 litre target, then the controller stops the pump. Dead simple. No calibration drift. For custody transfer of diesel in the Pacific Islands, we recommend a SILVER-OGM meter with a dual pulse output. Channel A drives the local totalizer, Channel B goes to the government excise computer. Both channels deliver the same raw frequency, ensuring no discrepancy between the two records.
Frequently Asked Questions
1. What is the typical pulse output frequency range of a Silver Instruments flow meter?
Most of our meters output from 0.5 Hz at very low flow up to 2000 Hz at full scale. For oval gear meters on lubricating oils, the factory default is often set to 500 Hz at maximum flow to provide a comfortable margin for PLC scan times.
2. Can I get both a pulse output and a 4-20 mA signal from the same flow meter?
Yes. Many customers add a modular analog output board to the pulse-only meter. For example, a SILVER-VF vortex meter can ship with a raw frequency pulse output plus a 4-20 mA HART output derived from the same sensor. Note that the two outputs are galvanically isolated in the factory to prevent loop interference.
3. How do I convert pulses to total flow?
Divide the total number of counted pulses by the K-factor (pulses per litre or pulses per cubic meter). A meter with a K-factor of 500 pulses per litre means every 500 counts equals one litre. If your counter accumulates 125000 pulses, the total volume is 250 litres. This math runs directly in the PLC ladder logic with a simple divide instruction.
4. What cable should I use for long distance pulse transmission?
Use a 2-core or 3-core shielded twisted pair cable with the shield grounded at the PLC end only. For runs over 100 metres, we normally suggest a 24 V DC supply and a pull-up resistor to sharpen the pulse edges. Avoid routing the pulse cable alongside VFD motor cables.
5. Do you offer ATEX certified pulse output meters for Zone 1 areas?
Yes. Silver Automation Instruments provides intrinsically safe pulse output (Ex ia) on oval gear, turbine, and vortex flow meters. We can supply the matching zener barriers and ATEX certificates for the complete loop. Mention the gas group and temperature class when you send the RFQ.
Get a Specific Quote and a Tested K-Factor
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will propose a flow meter with digital pulse output that matches your PLC or totalizer input channel, pre-configure the K-factor, and email you a serialized calibration report within two working days.
